Upgrade H7 LED RGB Bulb KIT fits Toyota Hilux N70 11-15 Face-lift Eagle Eyes Lights

Upgrade For Panel House Eagle Eyes Headlights To Suit

• Toyota Hilux N70 [FACE-LIFT] 07/2011 - 03/2015 - SKU: W0-TYN7.3014.H

• WILL NOT FIT PRE-FACELIFT N70 2005 - 2011 MODELS

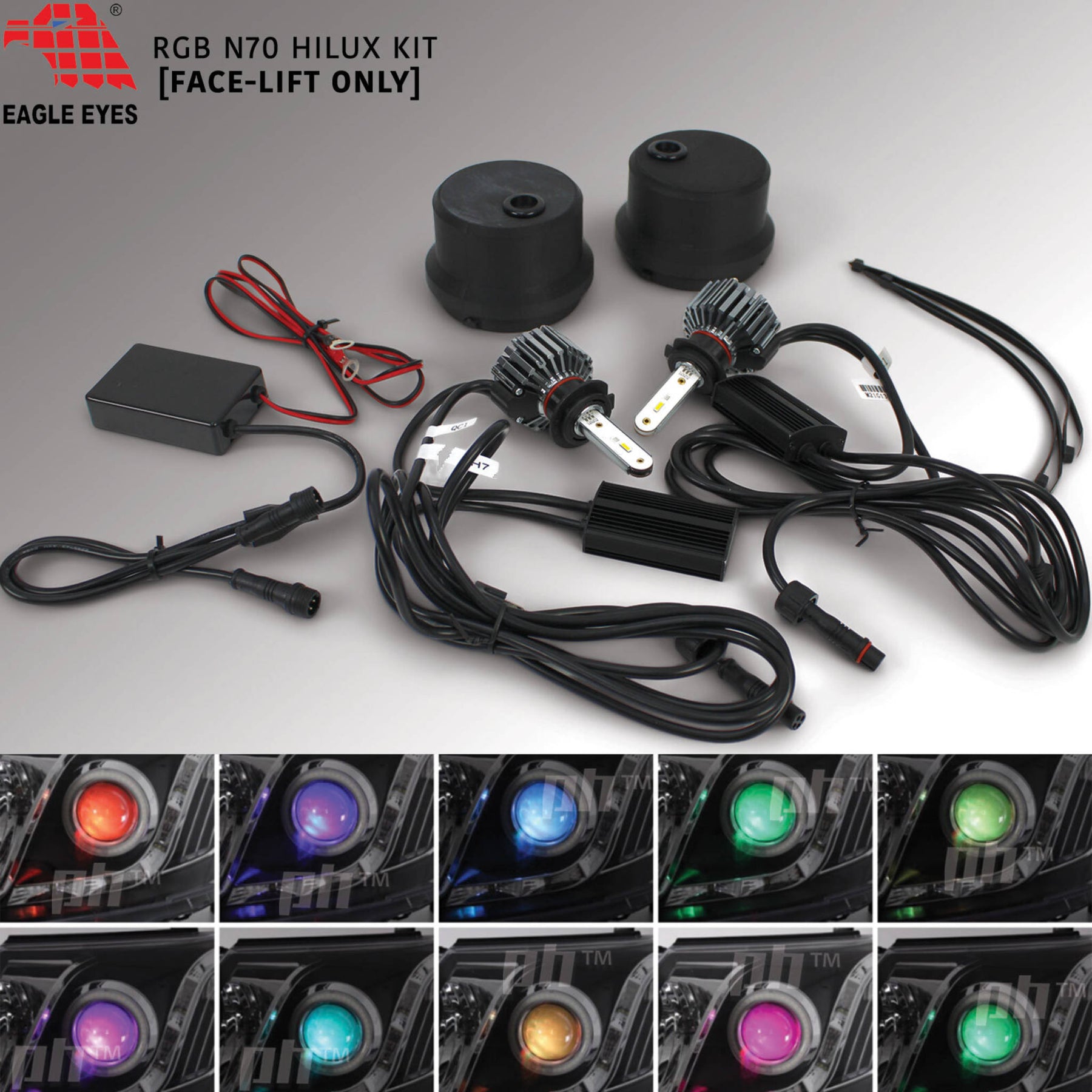

Kit includes:

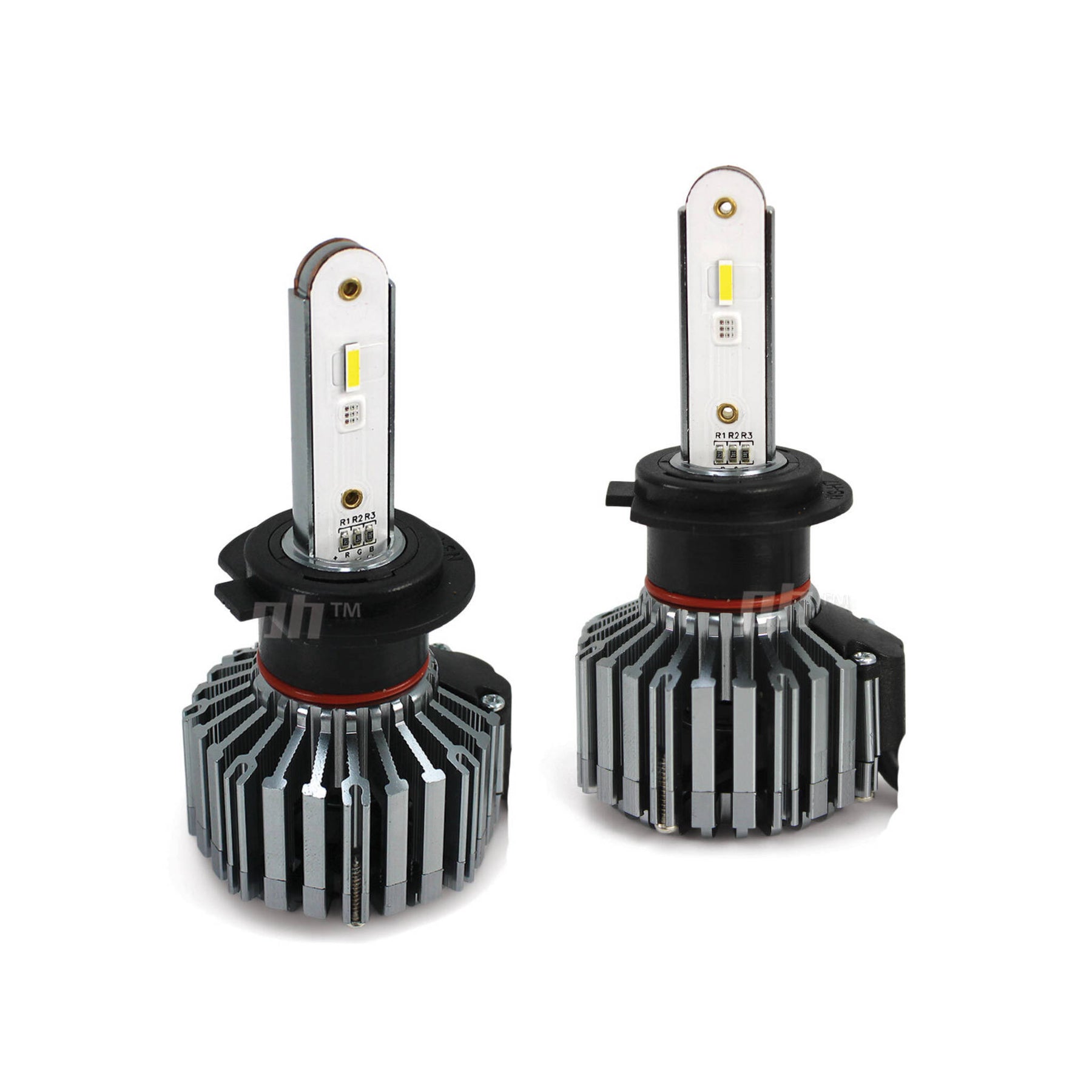

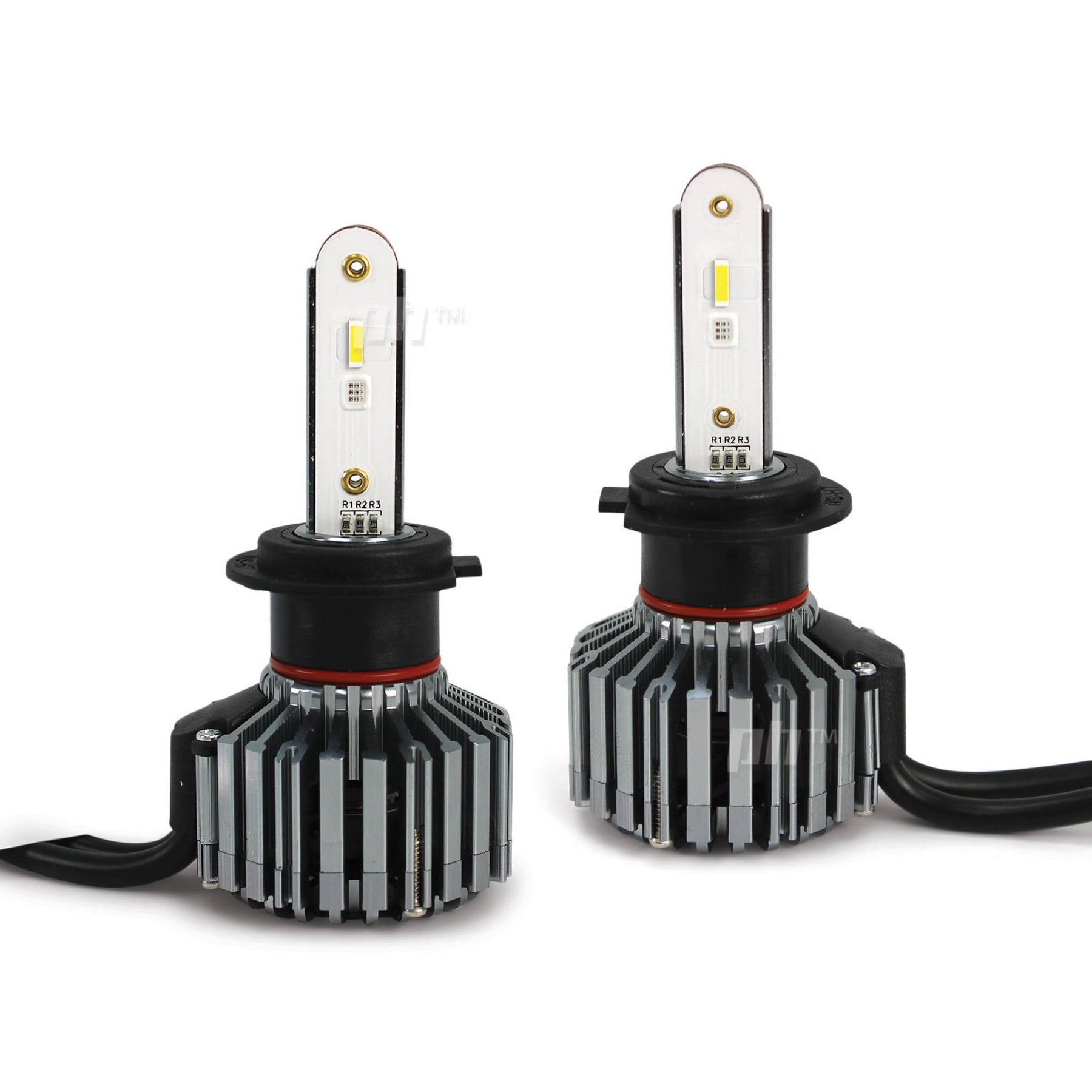

• 2 x H7 LED RGB bulbs

• 2 x LED ballast's

• 1 x Bluetooth controller box

• 2 x Extended dust caps

• 2 x Rubber grommets

• 4 x Small zip ties

• 2 x 3M double sided tape strips [For ballast's]

Specifications

• Premium Quality Aftermarket

• Plug 'N' Play

• Colour temperature - 6000k

• 3000 Lumens per bulb / 6000 lumens per kit

• Advanced heat management system

• Premium RGB & flip LED chip technology for 360 degree light source

• Built in canbus system for error free installation

• App controlled colour changing LED's with 16 million colours to choose from

• Sync to your music or choose from 20 different custom presets

• Spaceship grade aluminium 6069

Connections/ Wiring

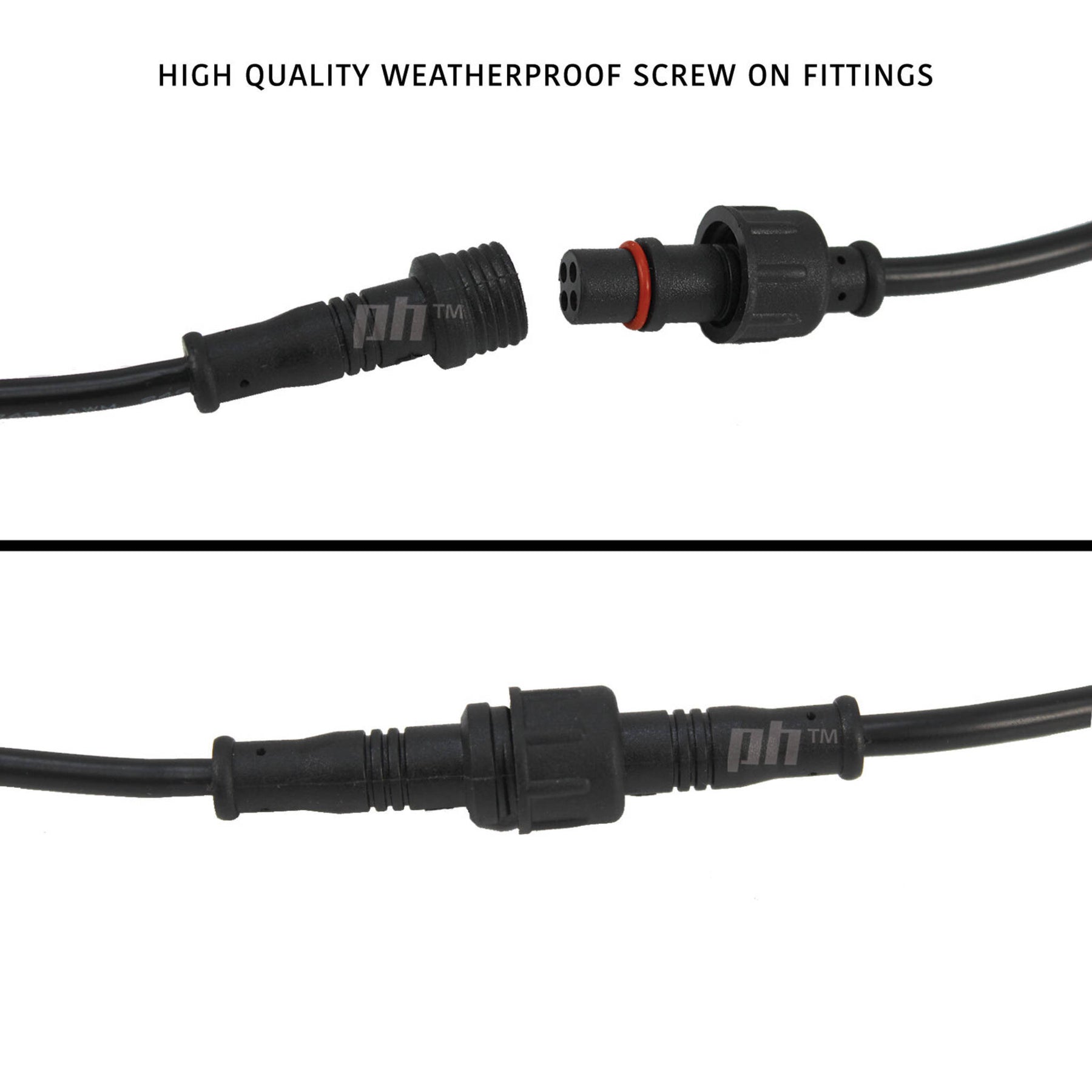

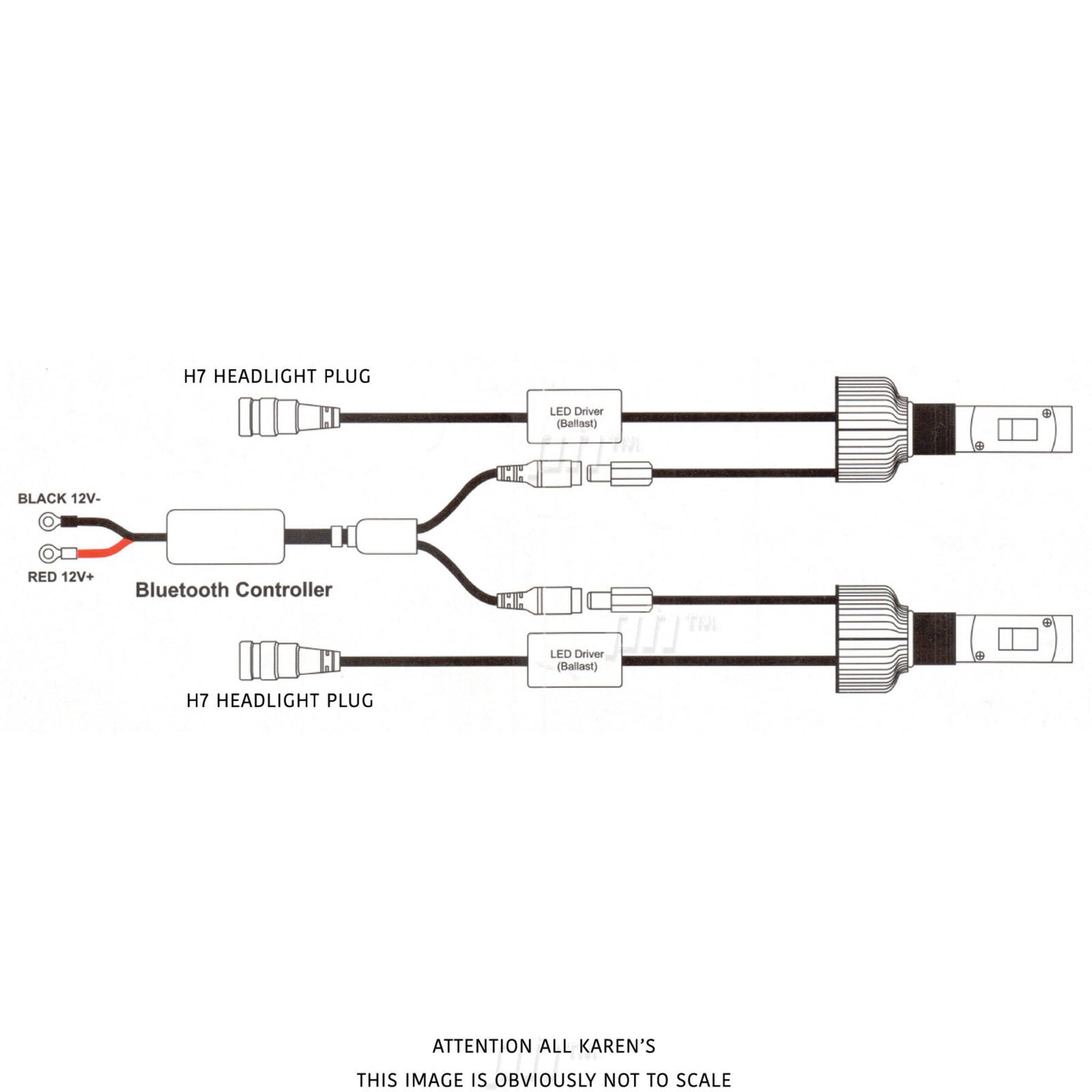

1. Plug all light units together and connect them to bluetooth controller [Refer to instructions]

2. Connect positive and negative wires to an ignition or accersories power source - Now turn your vehicle on to test RGB's are functioning before moving ahead

3. Remove exisiting bulbs

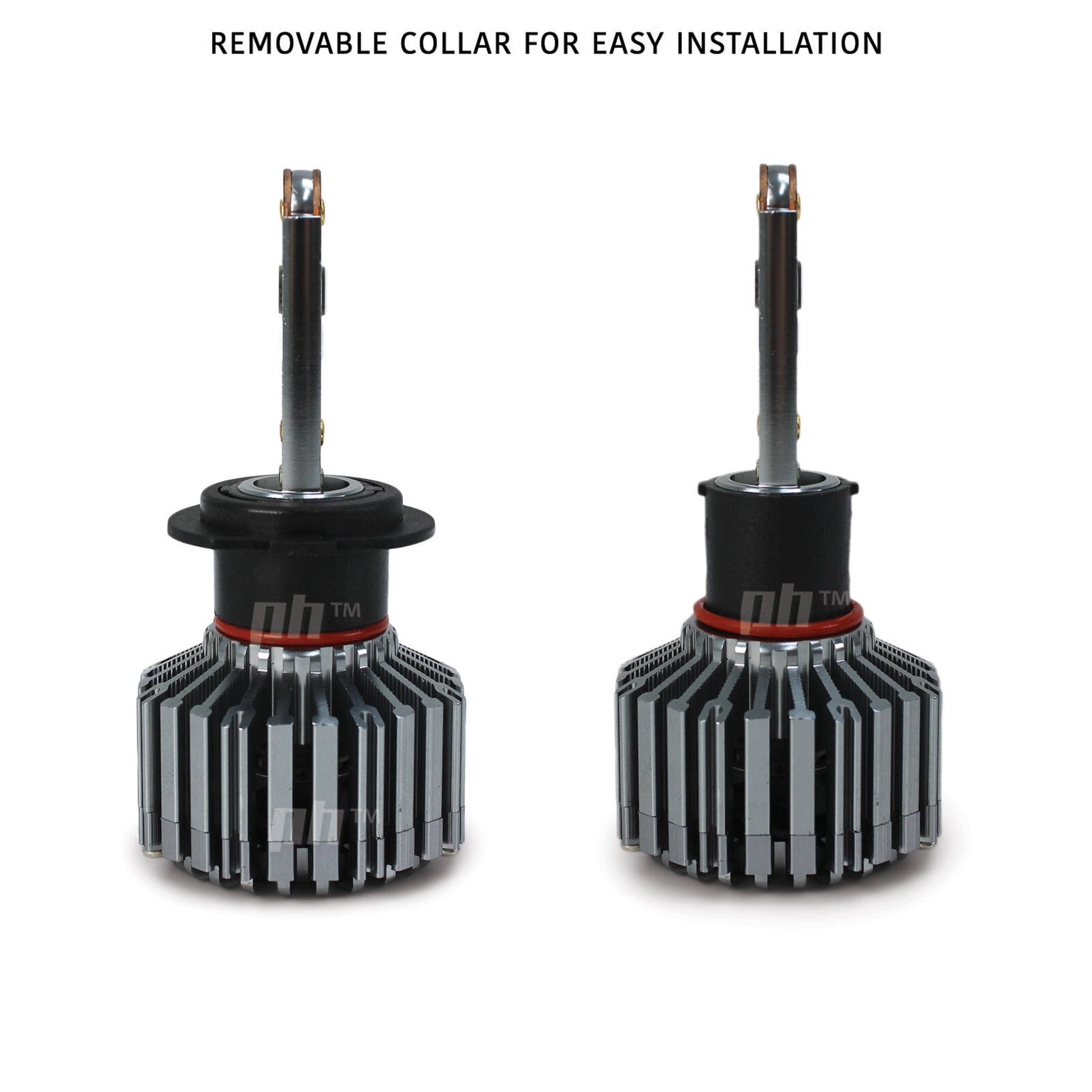

4. Remove the collars from bulbs [twisting counter clockwise] The collars fit into the light the same way you removed old bulbs, once collars have been fitted insert bulb into light and twist clockwise to secure in place

5. Insert LED drivers [ballast] inside light housing

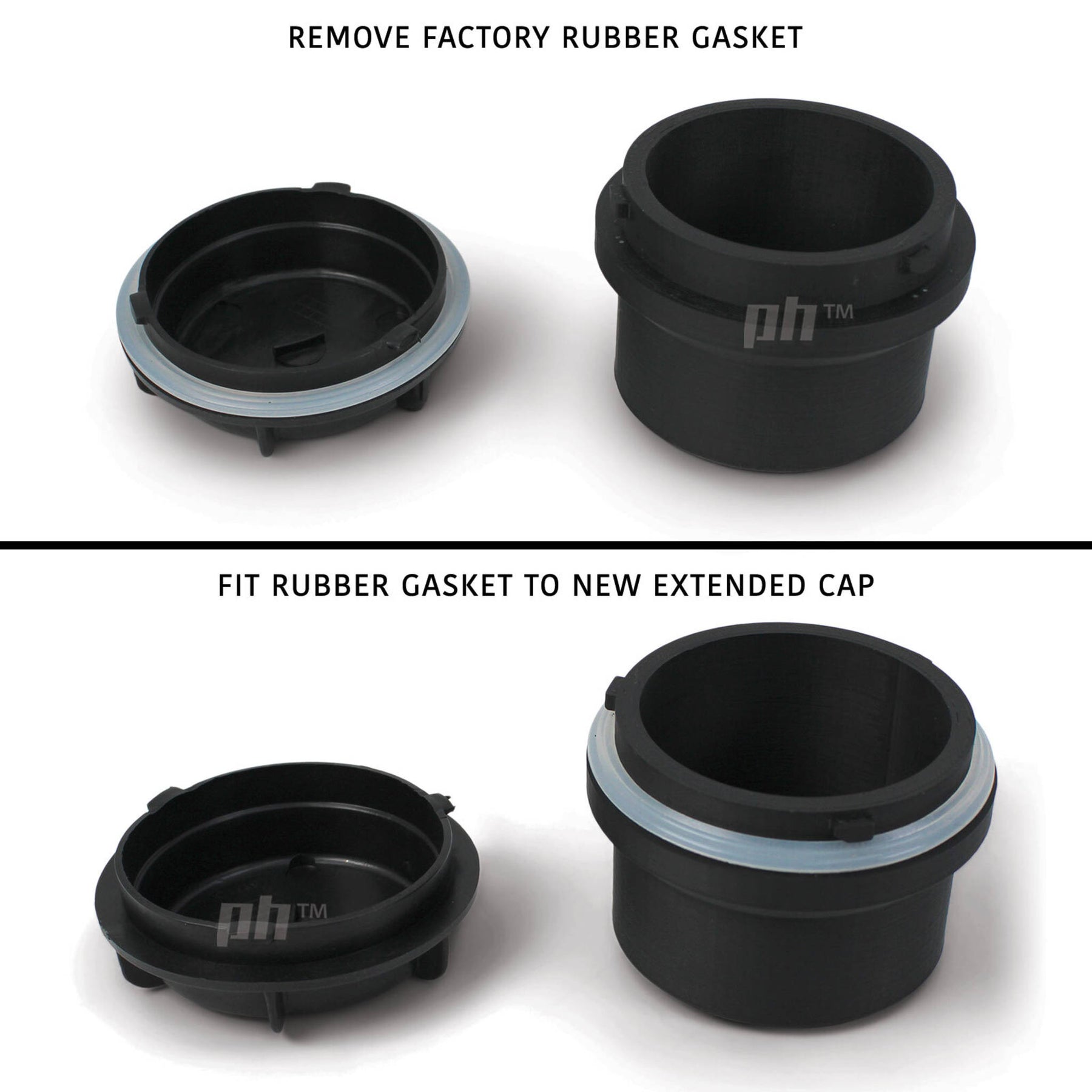

6. Insert rubber grommets into extended dust caps, then feed bluetooth controller wires through rubber grommets and connect to bulbs [Refer to instructions]

7. Use zip ties provided to neatly mount and hide any loose wires, then double sided tape the bluetooth control box in your desired location [Refer to instructions]

8. Please ensure wires aren't touching anything hot or any moving parts

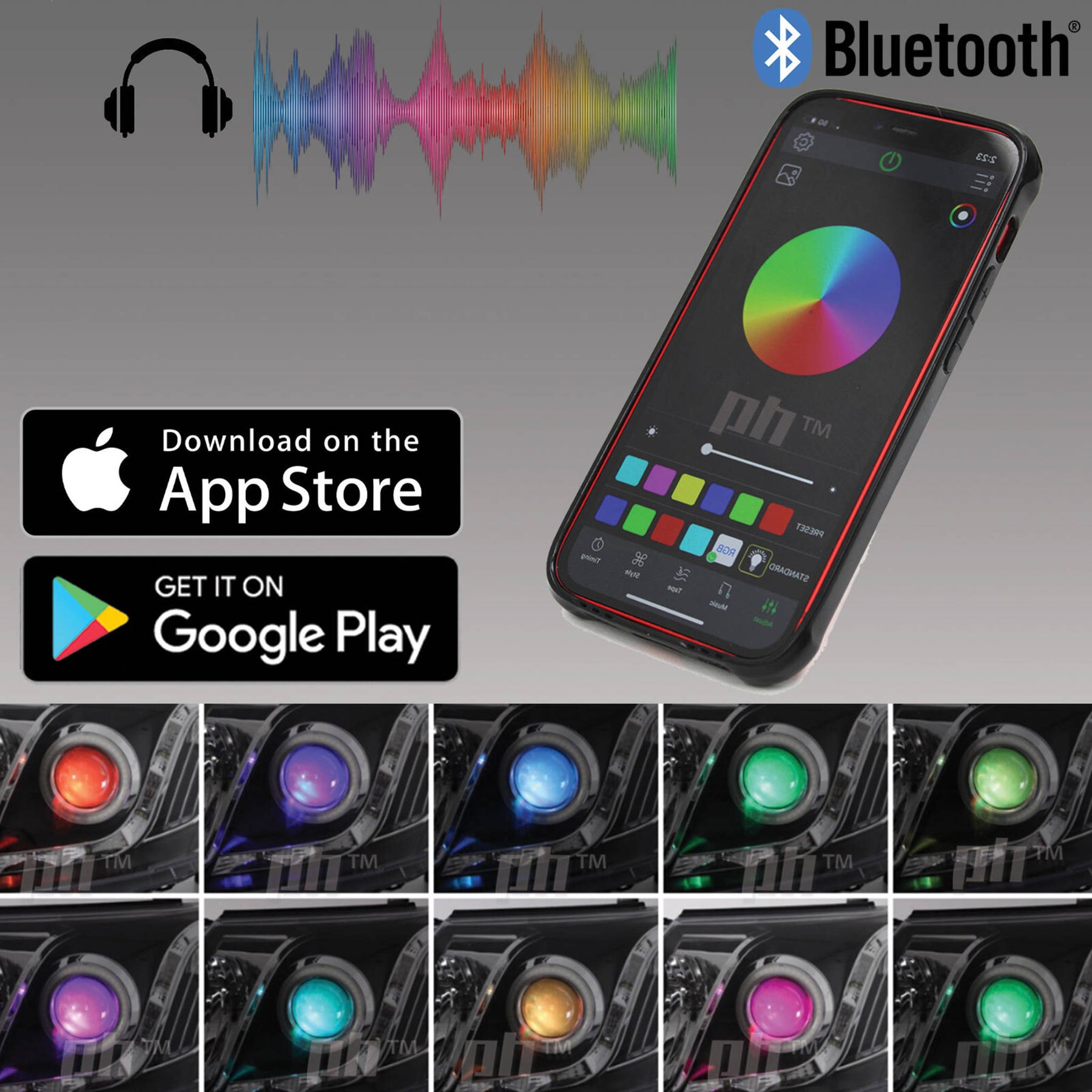

9. Scan QR code to download app, connect via bluetooth and enjoy

• All sockets must be fitted correctly. Failing to do so, may cause moisture or water to build up in light. Damage caused by improper installation will void warranty.
